MEI ALUMINIUM COMPOSITE PANEL

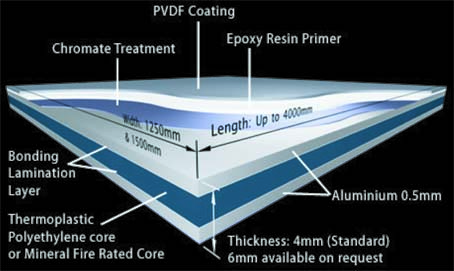

Aluminum composite panels Consists of two layers of smooth aluminum skins (0.2mm-0.5 mm thk) sandwiching a polyethylene core, thermo-bonded by polymer adhesive fi lm in a continuous thermo co-extrusion process, pre-fi nished with a premium coil coating, PVDF2 or Polyester coating and available in a variety of lengths and widths to allow for imaginative design and creativity.

They are frequently used as external cladding of building, partitions, false ceilings, etc… and also widely applied to signage industry as an alternative to those heavier, expensive substrates.

Can be easily cut, folded, shaped, and punched. They’re widely used as indoor and outdoor Architectural cladding, decorative insulation materials.

Suitable for all weather conditions from hot and humid of the Middle East to extreme cold and dry weather of other continents. Composite panels are available in different variants of width & thickness, mirror and brushed metal finishes.

MEI is leading the market for the past decade with its quality and commitment. We provide fire proof Aluminium composite panels that are durable, lighter and superior in strength. Our product carries a guarantee upto 20 years

The major features of MEI Composite panels are :

  • ​​ High standards of thermal insulation.
  • ​​ Provides durability and long life.
  • ​​ Lightweight and easy installation.​
  • ​​ Saves construction and maintenance cost.
  • ​​ Full technical and installation support.
  • ​​ Major saving in energy cost.





ALUMINIUM COMPOSITE PANELS HAVE MANY PHYSICAL PROPERTIES, SUCH AS !

  • • High strength
  • • Highly cost -eff ective
  • • Fire resistance
  • • Weather proof
  • • Waterproof
  • • Sound insulation
  • • Impact resistance
  • • Light, easy to fold, curve, cut, shape and maintain etc.

MATERIAL SPECIFICATION

  • • Thickness ranges: from 2mm to 6mm
  • • Standard size: 1,220 x 2,440mm
  • • Non standard sizes ( available upon requirements).
  • • Width can be 1220, 1250, 1270, 1500, 1550, and 1570mm.
  • • Length 2,440mm and customized length Within 5,000mm
  • • Weight: 5.6kg/m2 based on 4mm thick
