BAAB Door is a cost effective solution to meet all the requirements of a sectional overhead door for Garage and Industrial applications whether it is Aluminum or Steel, manually or electrically operated from the right source. Our doors are among the best in the world because we understand your needs. The door system is completely tailor made to meet the correct specifications and requirements of the customer. The door panels are produced under ISO 9001-2008 quality procedure meeting all international standards. We use technologically advanced hardware from the world renowned manufacturers in Europe and High-tech operators with safety features from Germany.

Features and Benefits

  • Injected Polyurethane insulated panels monolithically protected by steel or Aluminum facing for better strength, durability, sound absorption, temperature stabilization.
  • Hot galvanized coated steel for scratch and corrosion resistance and aluminum coated for light weight and anti corrosion.
  • Heavy duty galvanized steel hardware to suit any site conditions.
  • Nylon Rollers with high quality ball bearing, galvanized steel hinges for smooth operation.
  • Provided with handle, foot plate and chain hoist for easy manual operation.
  • Higher operating speed avoiding big temperature difference.
  • Quick and easy exchange of damaged panel helps to reduce service cost.
  • Glazing option for better interior lighting and improved aesthetics.
  • 100% own panel production for flexibility and actual demand fulfillment.

Garage & Industrial Doors

Garage-Door Industrial-Door

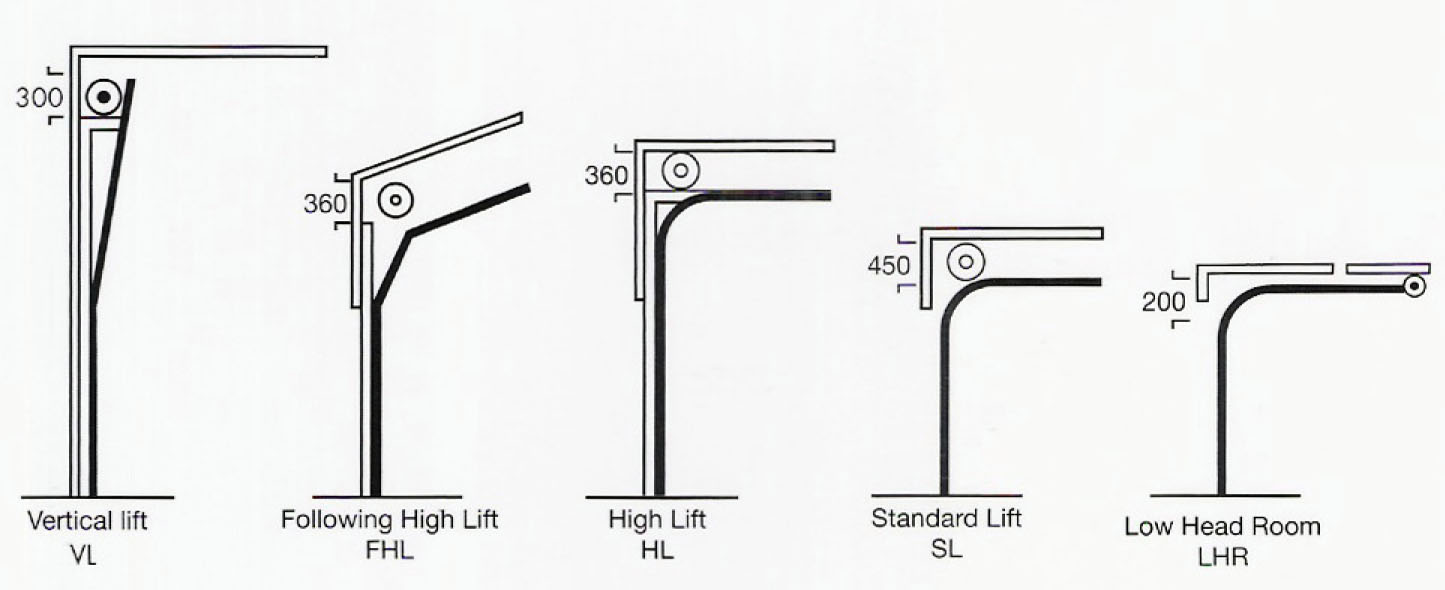

BAAB_DOOR Lifting-Methed

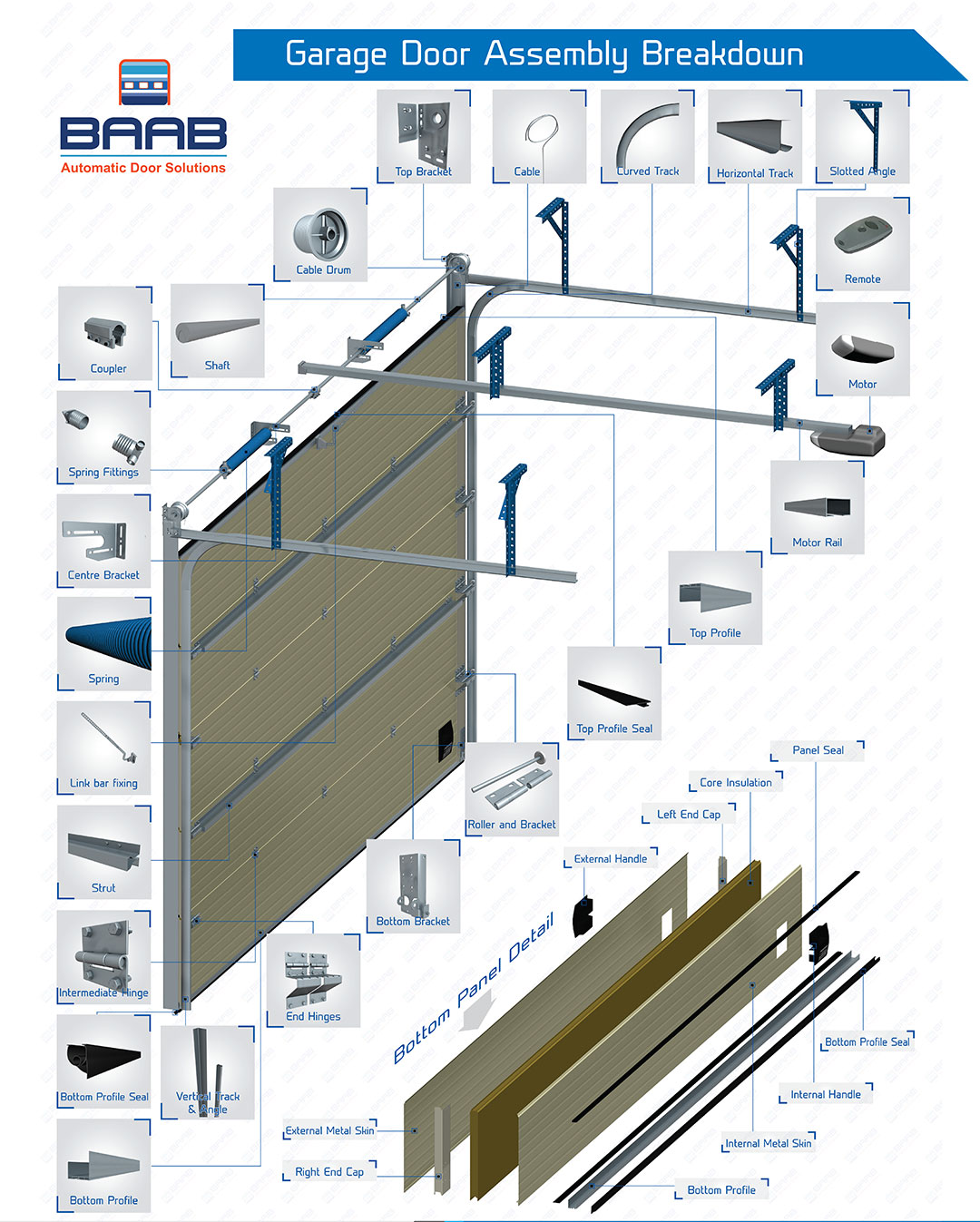

Hardware

  • ​Premium product hardware imported from European hardware specialist.
  • The vertical and horizontal rigid industrial track is made of galvanized steel. The tracks are designed to suit any site condition.
  • Torsion springs are made of shot preened galvanized spring wire in accordance to DIN 17223. This process protects spring against corrosion and gives the top quality. Springs are rated for 20,000 upto 100,000 operations.
  • Hinges are made of 2.5 mm plated steel and heavy duty Nylon Rollers of 46.5 mm outside diameter with high quality ball bearing.

​​

Standard Fittings

  • ​Spring Bumper (Stopper)
  • Nylon black handle
  • Pull down rope

Optional Fittings

  • ​Oval or rectangular windows
  • Security lock
  • Chain hoist

Technical Specifications

BAAB Panel Types

  • ​​Alsto:0.7 mm or 0.5 mm Stucco Embossed Aluminium skins on both sides coated in with RAL 9010.
  • Alpo:0.7 mm or 0.5 mm Aluminium Polyester coaeted in Off-White RAL 9002 on both sides.
  • Plastel:Aristocrat Stylish door with raised panel in wooden finish designed and developed for your device.
  • Polystel:0.5 mm steel polyester coated in white RAL 9002 on both sides.

  • Door Size Minimum 2250 x 1800 mm (W x H). Maximum 8000 x 5185 mm (W x H)
  • Panel Height530 mm
  • Panel Thickness50 mm
  • Insulation Injected polyurethane for excellent door tightness and monolithic sections.
  • Panel-double skinDouble skin insulated with polyurethane
  • HardwareNylon rollers with adjustable roller brackets, powder coated/GI torsion springs from Holland.
  • SealingCompletely seated with EPDM sealings for weather tightness on all sides and between the Panels.
  • OperatorHitech operator for Garage/Industrial doors with safety features, remote/push button control options.
