KALZIP® STANDING SEAM​​​

Kalzip® systems

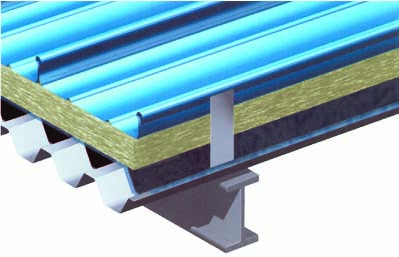

Kalzip® is a flexible, weather-proof, easy-to-install system made of aluminium profiled sheets and well co-ordinated accessories. Installed using the modular design principle, Kalzip® is the complete solution for high quality shape and function – throughout the building’s entire life. Physical construction aspects such as sound-proofing, heat-insulation and moisture-protection, as well as climatic and health requirements, are taken into consideration in the layers of the roof structure. If produced on site the lightweight sheets can be supplied in lengths of 80 metres and more and allow a particularly fast and economical installation.

Kalzip E clip

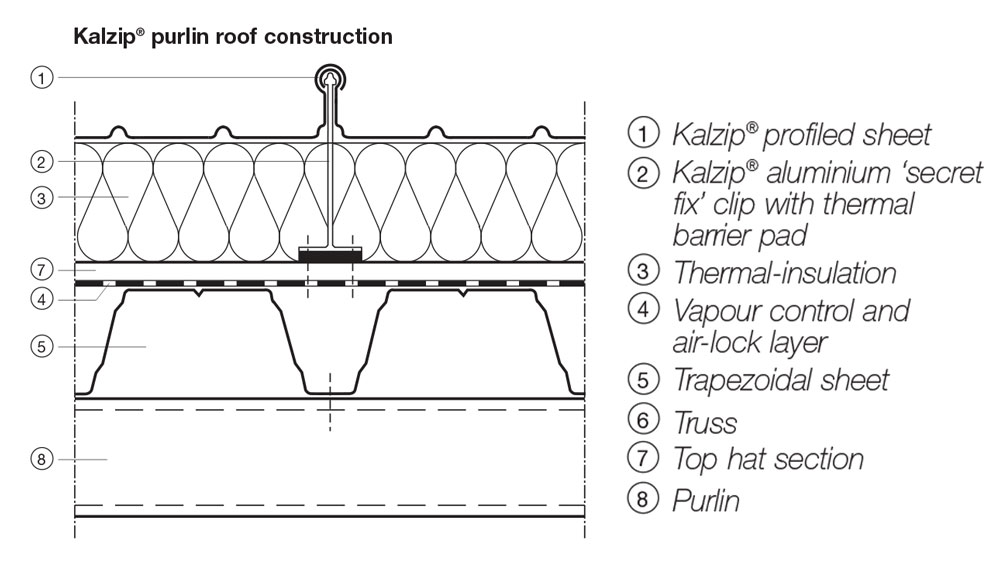

Special aluminium clips have to be used for joining the Kalzip® profiled sheets with the substructure of the roof. They are locked into the seam and will be overlapped by the following Kalzip® element, so that the fixing elements are hidden under the roofing. This ensures that the roofing elements need not to be punctured for fastening. The newly developed E clip even improves the as such excellent sliding properties of the Kalzip® roofing. The Kalzip advanced E clip is a steel reinforced GFRP clip that is available in 20 mm height increments, up to a maximum of 180 mm Kalzip® meets current-day requirements in a special way: • Lightweight • Great strength • Resistance • Corrosion-proof • Practically maintenance-free • Resistant to atmospheric effects • Flexible shape • Non combustible • Can be used as lightning conductor • Can be re-usable • High quality material • Can be recycled • Can be re-used, maintaining full functional quality
