MATERIAL SPECIFICATION and DESIGN CRITERIA​​

MATERIAL SPECIFICATION and DESIGN CRITERIA​​

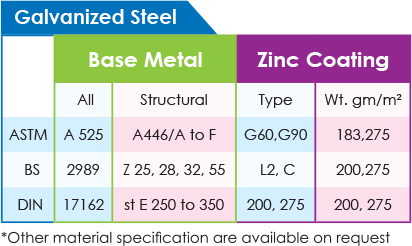

Notes :

  • Structural capacity is based on B.S. 5950 part 6/94
  • Permissible span tables is constructed for A 446 Grade D material with Fy=345 E=205000 N/mm2
  • span should not exceed (No limit ) value.
  • Use unfactored (working) combinations of loads to check permissible span
  • Panel length as per request (maximum 12 m).

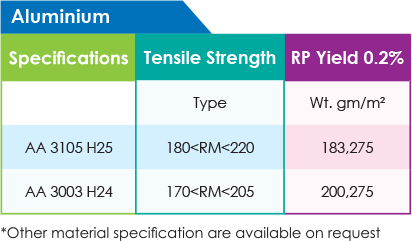

  • Material Specification for ALUMINIUM

Notes :

  • Structural capacity is based on B.S. 8118 part 1/91
  • Permissible span tables are constructed for A 3105, AA 3003 H24, 25, 26 (BS 4300/6 Alloy NS 31) with E=70000 N/mm2, Fy=170
  • span should not exceed (No limit) value.
  • Use unfactored (working) combinations of loads to check permissible span
  • All dimensions are nominal
